Ubiquiti UniFi Switch Flex 5-Port Layer 2 Gigabit with PoE Support (USW-FLEX)

The Ubiquiti UniFi Switch USW-FLEX is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers five RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

Ubiquiti UniFi Switch USW-FLEX Key Features

  • Auto-sensing 802.3af PoE
  • 5 RJ45 Gigabit Ethernet ports
  • Switching Performance
  • PoE Flexibility
  • Indoor/Outdoor Design
  • Versitile Mounting
  • Seamless Integration
  • Versatile Mounting

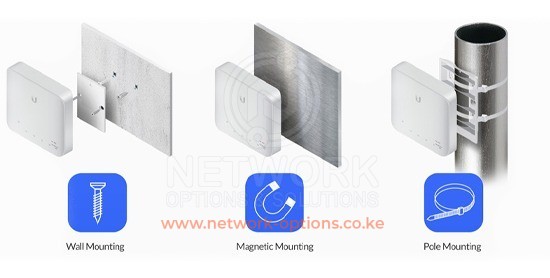

    The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

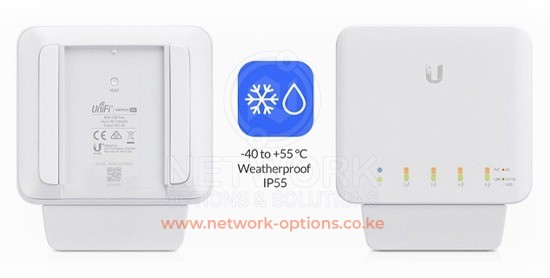

    Indoor/Outdoor Design
    The UniFi Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

    Ubiquiti USW-Flex General Specifications

  • Dimensions: 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10″)
  • Weight: 230 g (8.11 oz)
  • Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
  • Management Interface: Ethernet In-Band
  • Power Method (Port 1):
  • – PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-)1
    – PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)2
    – PoE Mode 3: 50V/60W PoE Adapter3

  • PoE Out (Ports 2-5): 802.3af (Pins 1, 2+; 3, 6-)
  • Max. Power Consumption (Excluding PoE Output): 5W
  • Max PoE Wattage Per Port: 15.4W
  • Total PoE Power Budget:
  • – Powered by AF mode PSE: 8W
    – Powered by AT mode PSE: 20W
    – Powered by BT mode PSE: 46W
    – Powered by PoE Adapter (Enabled in Controller): 46W

    Brand

    Ubiquiti

  • Dimensions: 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10″)
  • Weight: 230 g (8.11 oz)
  • Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
  • Management Interface: Ethernet In-Band
  • Power Method (Port 1):
  • – PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-)1
    – PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)2
    – PoE Mode 3: 50V/60W PoE Adapter3

  • PoE Out (Ports 2-5): 802.3af (Pins 1, 2+; 3, 6-)
  • Max. Power Consumption (Excluding PoE Output): 5W
  • Max PoE Wattage Per Port: 15.4W
  • Total PoE Power Budget:
  • – Powered by AF mode PSE: 8W
    – Powered by AT mode PSE: 20W
    – Powered by BT mode PSE: 46W
    – Powered by PoE Adapter (Enabled in Controller): 46W

  • Voltage Range:
  • – 802.3af: 44 – 57V
    – 802.3at/bt: 50 – 57V

  • LEDs:
  • – System: Status
    – RJ45 Data Ports: PoE; Link/Speed/Activity

  • ESD/EMP Protection: ± 16kV Air, ± 16kV Contact
  • Operating Temperature:
    – 46W PoE Output: -40 to 55° C (-40 to 131° F)
    – 25W PoE Output: -40 to 65° C (-40 to 149° F)

  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC
  • —1 Recommended PoE power source: US-8-150W (sold separately)
    —2 Recommended PoE power source: USW-Industrial (sold separately)
    —3 Recommended PoE power source: POE-50-60W-WH (sold separately)
    —(POE-50-60W-WH requires enabling injector mode in UniFi Controller)
